Economic type CNC Milling Controller Three Axis With USB + DSP PLC and macro function

Name: Economic type CNC Milling Controller Three Axis With USB DSP PLC and macro function
Brand: SZGH
Price: 1 USD

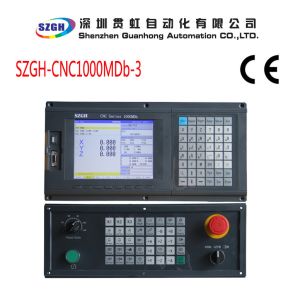

Economic type CNC Milling Controller Three Axis With USB + DSP PLC and macro function Manufactures

Brand Name : SZGH

Model Number : SZGH-CNC1000MDb-3

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1 set

Price : negotiation

Payment Terms : TT in advance / Western Union / Paypal /LC/Alipay/Creditcard

Supply Ability : 300 sets per month

Delivery Time : within 3-5 days upon receipt of full payment

Packaging Details : with carton, as the standard packing of SZGH

Display screen : 8 inch real color LCD

Copy interface : USB movable U disc

spare part 1 : addtional panel (free charge)

spare part 2 : MPG / handheld

memory : 128M

CPU : 32bits

Contact Now

Economic type CNC Milling Controller Three Axis With USB + DSP PLC and macro function

Product Description:

SZGH-CNC1000MDb-3 is three axis economic type milling controller system, specialized in all kinds of type milling machinery, support PLC program, macro and ATC function. free to maching addtional panel and MPG.

Feature:

three axis economic type milling controller.
128MB memory.
110Mb user store room.
640x480 8 inch real colour LCD displayer.
Touch screen main and sub panel.
High anti-jamming switch power.
USB movable U disc copy interface.
RS232 interface.
Spindle servo speed control/spindle frequency convertion speed control.
Manual pulse generator.
PLC and macro function
Auto tool change function.
English menu, program and interface, full screen edition.
32 bits high performance, low power consumption industrial grade ARM microprocessor.

Technical specification:

1) System technical parameter

controllable axesX,Y,Z five axes.
linkage axesArc 2-3 axes, liner 2-3 axes.
pulse equivalentX,Y,Zaxes:0.001mm.
max speed X,Y,Z60000mm/min.
cutting speed 1-10000mm/min.
min input unit 0.001mm.
program size range ± 99999.999.
99 tools management.
program code ISO-840 international standard.
program coordinate system definition ISO-841.
chassis protection complies with regulation of IP43.

2)System function

Auto-diagnosis function

All around diagnosis of CPU, storer, LCD, I/O interface, parameter status, coordinates, machining program etc. shall execute when the system starts or resets. In operation, it makes real time diagnosis of power, spindle, limit and all I/O interface.

Compensation function

automatic backlash compensation.
tool radius automatic compensation.
tool radius automatic offset and sharp angle transition.
leading screw pitch error automatic compensation.

Abundant instruction system

scaling up/down instruction
mirror machining instruction.
mutiple tool offset instruction.
program cycle, jump, call and different program ending.
multiple positioning instruction starting point setting fixed point,etc.
linera, circular spiral line interpolation instruction.
program management instructions: program cycle, call, transfer and different program ending method, etc.
6 work pieces coordinates system .
English menu, full screen edition
Easy operation, convenient viewing.
Abundant debugging functions
it can point out clearly what errors of operation are and guide to correct them.
